Product of CUBILOG DIGITAL
LED parking display - installed with sensors
Customizable LED display
- Industree is a provider of sensor-based technologies, offering full solutions for LED displays as well.
- The LED displays integrated into our system are available in different sizes and can show information in any color.
- The data sources are sensor-based by default, but we also offer the possibility of manual input.

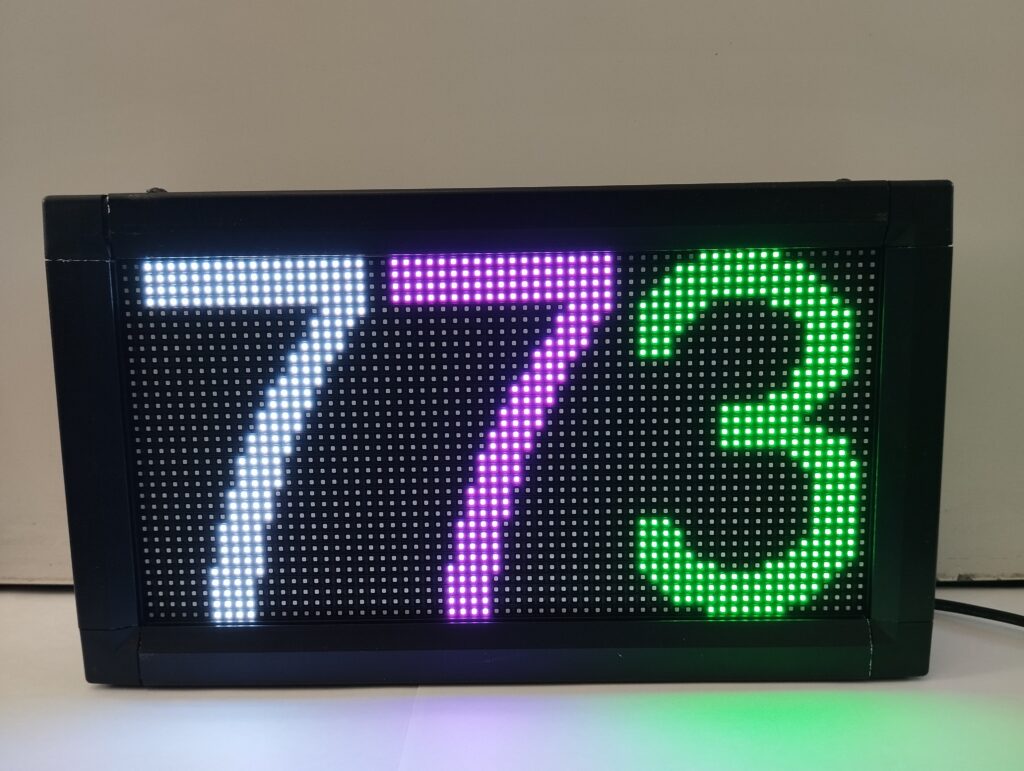

- Besides parking data shown in the example image, the signs are also suitable for displaying other types of information (temperature, “full,” etc.).
INFORMATION
Information & Data Display
- A multi-functional outdoor model (IP67), color LED matrix display, offering an integrated solution that includes the control unit and communications device.
- The CUBILOG-RGB control unit connects to the server via mobile internet and displays the server-available information on the connected color LED panel(s).
- The compact solution, with the controller and up to 4 LED panels, can be mounted either on a facade or on a pole.
- The controller and the LED panels are also available in “open frame” versions, so they can be adapted for retrofitting where a frame or board is already installed on site.
Typical Scenarios
Number of free parking spots on streets or in parking garages.
Display of various information, advertisements in public spaces, workplaces, or dispatcher / control rooms.
Technical Specifications
- The control electronics built into the sign are IP67 rated, so the sign can be used outdoors and withstands weather conditions.
- The color LED panel is available in P5 and P2.5 versions.
- The integrated controller retrieves data from the server via mobile internet.
- Operation requires only 230V power supply.
- The data query frequency is configurable per device, so each unit can be individually set, which allows optimizing data traffic.
- The device stores queried data locally, so in case of temporary network outage, the sign shows the last available data, and when mobile network is available again, it reconnects and fetches the latest data.
- Through telemetry functions, the various devices can be monitored remotely — so the supervising person learns about disconnections or malfunctions.
- With a built-in watchdog function, devices auto-restart in case of outages or temporary service disruptions.
